SIP协议一致性验证方案分析互联网系统组件，Voice-over-IP，SIP,以及3G信令协议对SIP标准的符合性。该测试方案测试套件采用测试标准语言TTCN-3开发，由ETSI认证发布。SIP协议一致性验证测试套件在自动化测试平台TTworkbench上自动化执行，判定测试结果并对测试结果进行分析。该测试方案适用于SIP设备认证测试、VoIP设备入网及验收测试，SIP协议开发测试。

 SIP协议一致性测试方案特点

l  608 个全功能测试例

    Ø  User Agent behaving as a client or server

Ø  Proxy - outbound and simple proxy

Ø  Redirect server

Ø  Registrar

l  测试有效、无效以及不合时宜的SIP协议行为，测试SIP消息的语法变化

l  采用官方发布、验证的标准测试集

l  针对SIP测试适配灵活的参数配置

l  完全自动化测试

l  平台独立

l  不同级别详细的日志

l  测试结果总结

l  基于TTCN-3的测试定义测试文档



应用（Applications）

l  Softswitches

l  Gateways

l  Application servers

l  Conference bridges

l  Interactive Voice Response Systems (IVR)

l  SIP-Enabled FW/NAT

l  SIP multimedia servers

l  2.5G/3G cellular devices

l  IP phones

l  Connected PDAs

l  Video terminals

l  Soft phones

l  Voice enabled Web and e-commerce solutions



SIP协议一致性测试方案亮点

l  基于标准的测试

l  快速简单的测试执行和测试分析

l  可重复的完全自动化测试

l  平台独立，可容易的集成了到现有的测试环境中

l  基于不断演进的测试标准语言TTCN-3

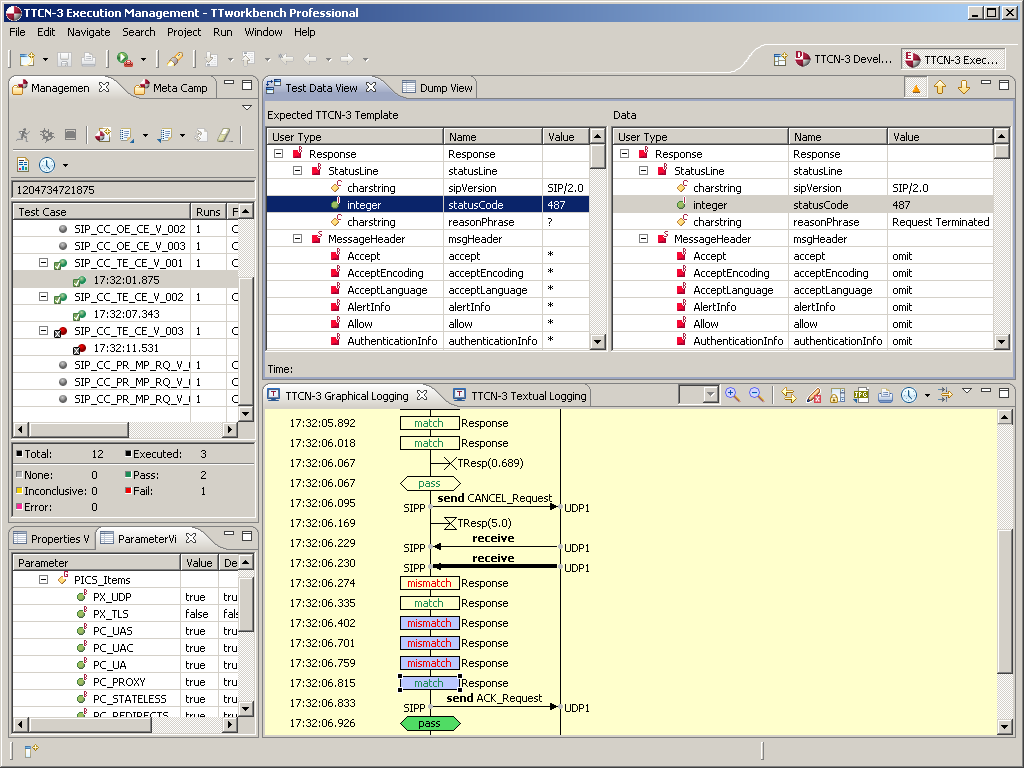

                   Test Management, Execution and Analysis for SIP

符合标准(Conformance Tests and TTCN-3)

               ·     RFC 3261 SIP: Session Initiation Protocol, 2002-06

·        ETSI TS 102 027-2 Ver. 4.1.1 IETF SIP RFC 3261; Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT) proforma specification, 2006-07

·        ETSI ES 201 873-1 TTCN-3 Core Language V4.1.1, 2009-06

Standards (Test Framework Support for IMS) - 23 RFCs

·        RFC 2327 SDP: Session Description Protocol, 1998-04

·        RFC 2976 The SIP INFO Method, 2000-10

·        RFC 3262 Reliability of Provisional Responses in the SIP, 2002-06

·        RFC 3263 Session Initiation Protocol (SIP): Locating SIP Servers, 2002-06

·        RFC 3264 Offer/Answer Model with the Session Description Protocol (SDP), 2002-06

·        RFC 3265 Session Initiation Protocol (SIP)-Specific Event Notification, 2002-06

·        RFC 3311 The Session Initiation Protocol (SIP) UPDATE Method, 2002-09

·        RFC 3313 Private SIP Extensions for Media Authorization, 2003-01

·        RFC 3323 A Privacy Mechanism for the Session Initiation Protocol (SIP), 2002-11

·        RFC 3326 The Reason Header Field for the Session Initiation Protocol (SIP), 2002-12

·        RFC 3327 SIP Extension Header Field for Registering Non-Adjacent Contacts, 2002-12

·        RFC 3329 Security Mechanism, 2003-11

·        RFC 3428 SIP Extension for Instant Messaging, 2002-12

·        RFC 3455 Private Header (P-Header) Extensions to the SIP for the 3rd-Generation Partnership Project (3GPP), 2003-01

·        RFC 3515 The Session Initiation Protocol (SIP) Refer Method, 2003-04

·        RFC 3608 SIP Extension Header Field for Service Route Discovery During Registration, 2003-10

·        RFC 3680 Session Initiation Protocol (SIP) Event Package for Registrations, 2004-03

·        RFC 3841 Caller Preferences, 2004-08

·        RFC 3891 Replaces Header, 2004-09

·        RFC 3892 Referred By, 2004-09

·        RFC 3903 SIP Extension for Event State Publication, 2004-10

·        RFC 3911 Join Header, 2004-10

·        RFC 4028 Session Timers, 2005-04

Standards (On request)

·        RFC 2617 HTTP Authentication: Basic and Digest Access Authentication, 1999-06

·        RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Signals, 2000-05

·        RFC 3312 Integration of Resource Management and SIP, 2002-10

·        RFC 3320 Signaling Compression (SigComp), 2003-01

·        RFC 3420 Internet Media Type message/sipfrag, 2002-11

·        RFC 3485 The SIP and SDP Static-Dictionary for Signaling Compression (SigComp), 2003-02

·        RFC 3325 Private Extensions to the SIP for Asserted Identity within Trusted Networks, 2002-11

Reference Platforms

·        Java

·        Microsoft Windows XP, Vista, Windows 7, Windows 8

·        Red Hat Enterprise Linux (GTK, x86-32, x86-64)

·        Fedora (GTK, x86-32, x86-64)

·        SUSE Linux (GTK, x86-32, x86-64)



SIP协议一致性验证测试方案中文Datasheet资料下载：

SIP测试方案first-step用户手册下载：

测试测试套datasheet下载：
